Milling

Precise and flexible machining of individual parts and small series – thanks to modern CNC milling centers and many years of experience.

Short lead times
High precision
Flexible batch sizes
Experienced team

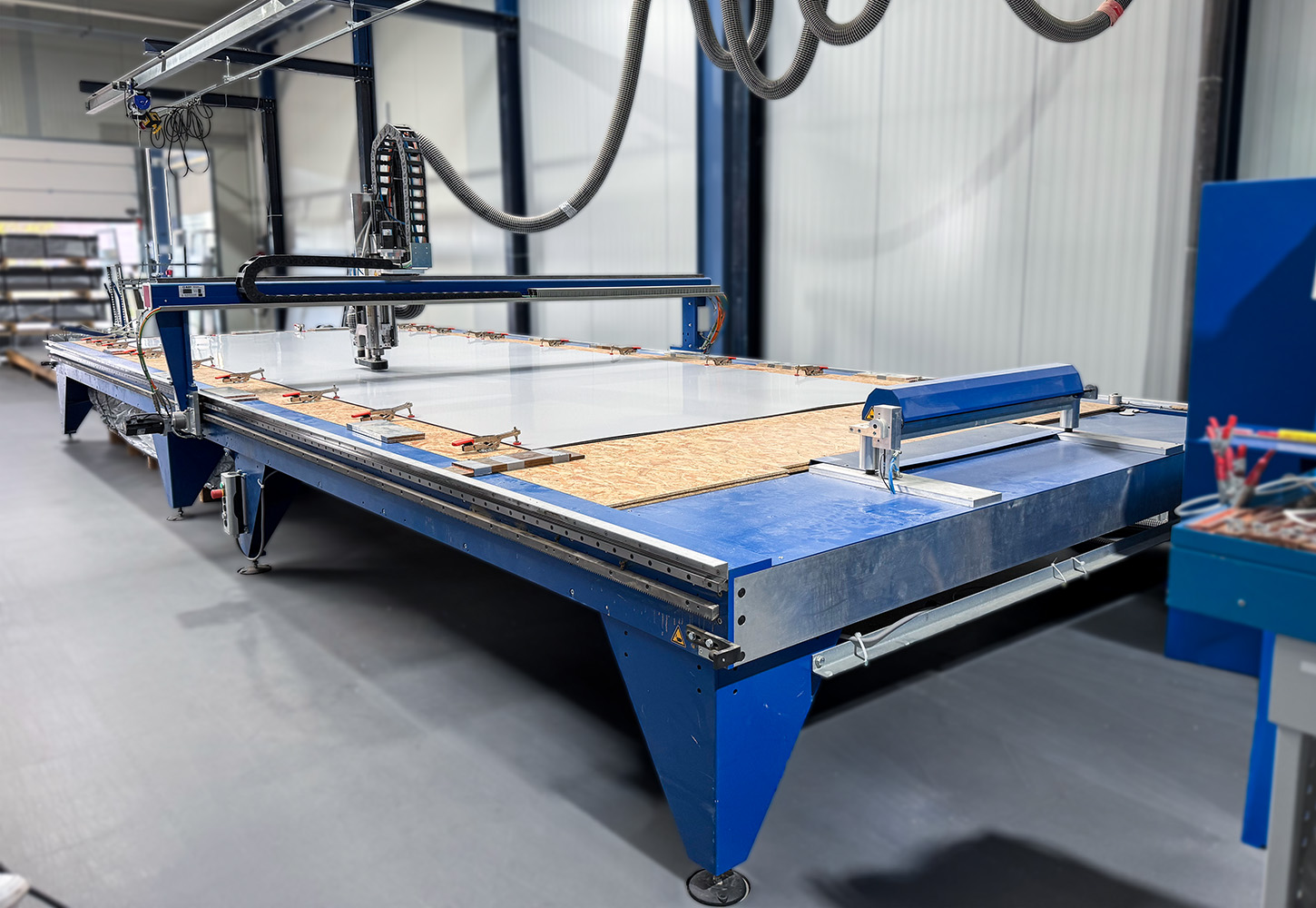

PFA-S6525

Large-format CNC gantry milling machine for machining technical sheet materials and custom cut-to-size parts. Ideal for large-area covers, mounting plates, and prototypes with precise contour machining.

Key Facts

Year of manufacture: 2024
Manufacturer: BZT Maschinenbau GmbH
Processable materials: PVC, Vivak, Exolon, and MKHP
Material thicknesses: PVC: 2 mm and 3 mm | Vivak: 2 mm and 3 mm | Exolon: 3 mm | MKHP: 2 mm, 4 mm, and 10 mm

Typical Use Cases

Machining and production of field covers
Manufacture of mounting plates for various products
Prototype construction for various areas
Custom covers for all kinds of products
We mill hard melamine sheets (MKHP)

Specification

Feature	Description
Type	BZT PFA-S 6525
Series	PFA
Design	Portal milling machine / gantry design
Travel path X × Y approx.	approx. 6500 × 2500 mm
Series travel paths	up to 8000 × 2500 mm
Drive X \| Y	Helical racks
Drive Z	Ball screw spindle
Racks X \| Y	25 × 25 mm, helical
Linear guides	yes
Planetary gearbox	installed
Motorization	available with closed-loop or servo motors
Optiscout optional	yes, with registration mark detection
Optional accessories	Vacuum table, T-slot plate, tangential knife, oscillating knife, creasing tool, roller conveyor, Z-250 portal elevation, pneumatics for additional tools
